4-Way Fire Inlet Breeching Valve

Fire Fighting Equipment

Ministry of National Defense

4-Way Fire Inlet Breeching Valve

Request a Quote Learn More



♻️

Environmentally Friendly



💡

Modern Technology



🎯

Excellent Customer Policy

4-Way Fire Inlet Breeching Valve

Fire Fighting Equipment

4-Way Fire Inlet Breeching Vavle

83MEC – Ministry of National Defense

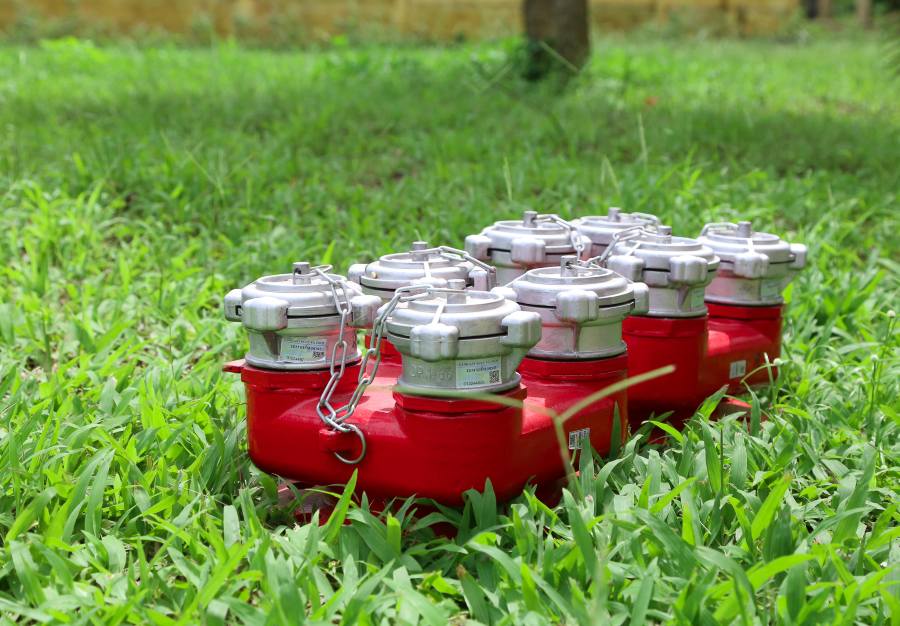

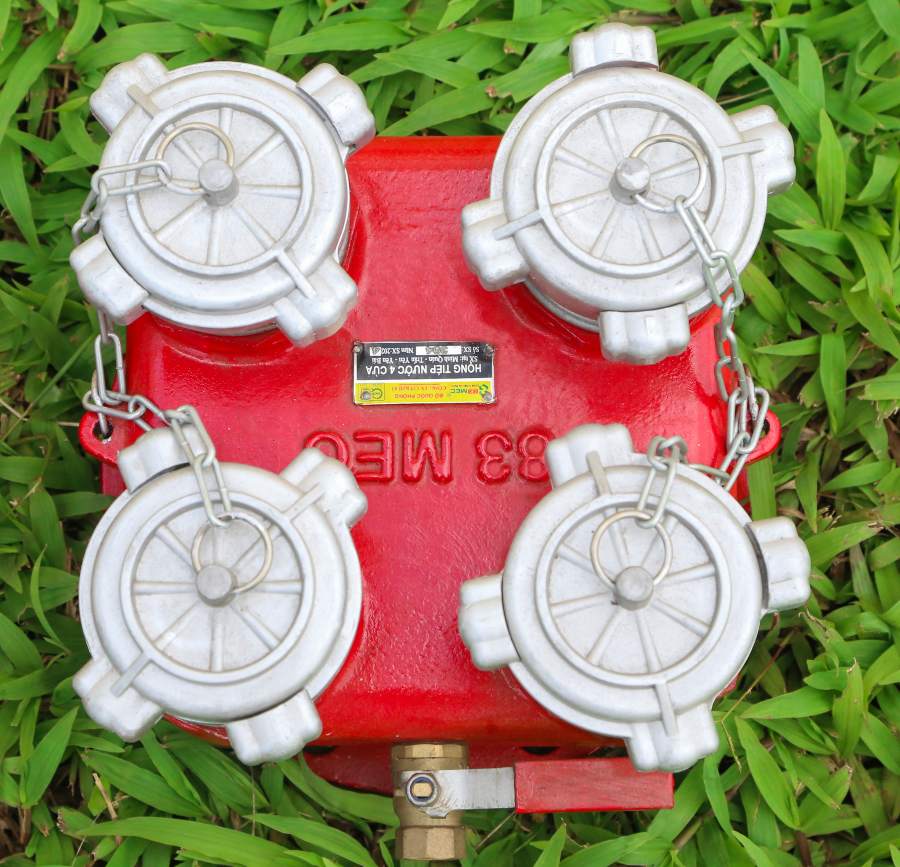

The 83MEC 4-Way Fire Inlet Breeching Valve is a specialized device in outdoor fire water supply systems, manufactured by 83MEC – an entity under the Ministry of National Defense, according to TCVN 5739-1993 standard.

With a robust structure, 4 flexible water supply outlets, high-pressure resistance, and superior durability, the BQP83 inlet breeching valve is an ideal choice for industrial parks, gas stations, factories, urban areas, railway stations, and other critical areas with high fire risk.

Request a Quote

PRODUCT INFORMATION

Product Code HTN.BQP.02

  • The four-way fire inlet breeching is installed into the water supply pipeline system to draw water for firefighting.
  • The breeching body is made of cast iron, integrally molded, preventing leakage in high-pressure environments.
  • The product is inspected and sealed with a stamp by the Fire Prevention and Fighting Department.
  • The product has a traceability stamp (QR code).
  • Product manufactured by 83MEC/Ministry of National Defense.
  • Design Standard: TCVN 5739-1993
  • Material – Color: Cast Iron – Red
  • Inner Outlet Diameter: 57mm
  • Bolt Hole Center Diameter: 180mm
  • Bolt Hole Diameter: 18mm
  • Connection Flange: D220
  • Working Pressure: PN10-PN16
  • Weight: 12kg
  • Dimensions: 285x270x140mm
  • Origin: Vietnam
