Two-Way Fire Inlet Breeching Valve

83MEC – Ministry of National Defense

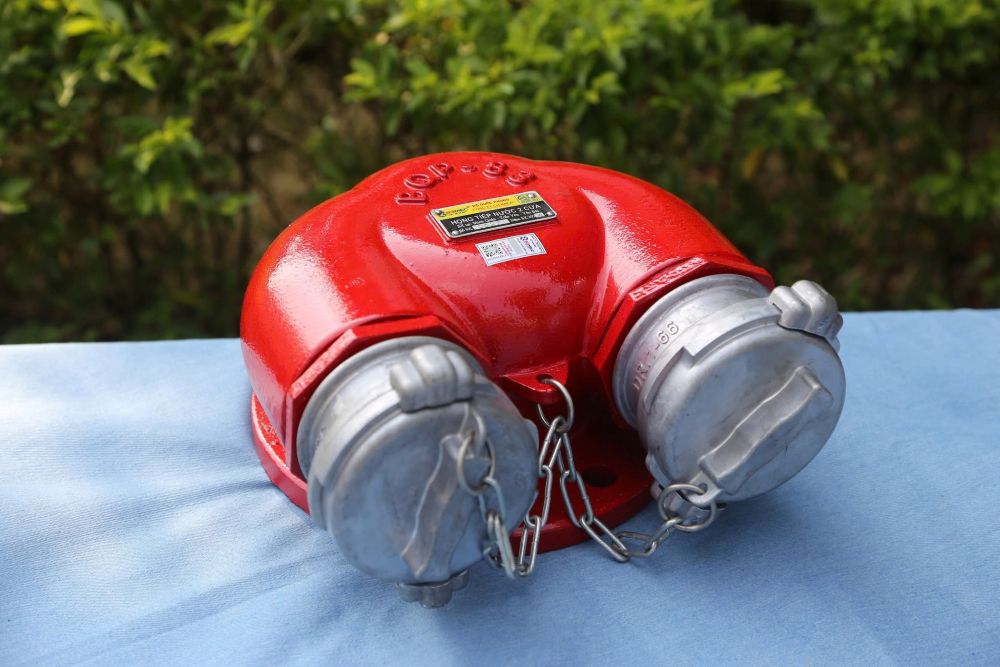

The BQP83 Two-Way Fire Inlet Breeching Valve, manufactured by 83MEC – an entity under the Ministry of National Defense, is a crucial component in outdoor fire water supply systems. The product meets TCVN standards, ensuring safety compliance in fire prevention and firefighting operations.

Request a Quote

PRODUCT INFORMATION

Product Code HTN.BQP.00

  • The two-way fire inlet breeching is installed into the water supply pipeline system to draw water for firefighting.
  • The breeching body is made of cast iron, integrally molded, preventing leakage in high-pressure environments.
  • The product is inspected and sealed with a stamp by the Fire Prevention and Fighting Department.
  • The product has a traceability stamp (QR code).
  • Product manufactured by83MEC/Ministry of National Defense.
  • Design Standard: TCVN 5739:1993
  • Material – Color: Cast Iron – Red
  • Inner Outlet Diameter: 57mm
  • Bolt Hole Center Diameter: 180mm
  • Bolt Hole Diameter: 18mm
  • Connection Flange: D220
  • Working Pressure: PN10-PN16
  • Weight: 12kg
  • Dimensions: 285x270x140mm
  • Origin: Vietnam
