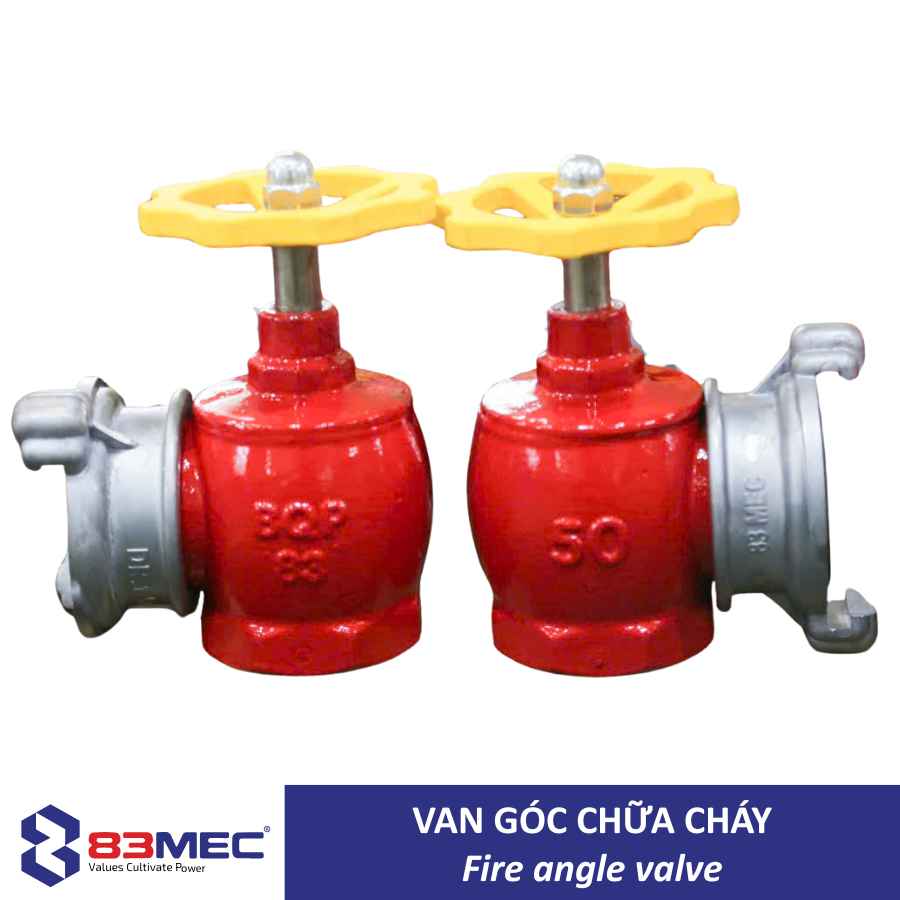

83MEC DN50 / DN65 Fire Angle Valve – Ministry of National Defense
🔥 Product Information
The 83MEC DN50 / DN65 Fire Angle Valve is an essential component in fire protection systems, designed to control and regulate water flow supplied to fire hydrants in buildings, factories, industrial zones, and technical infrastructure projects.
The product is manufactured by 83MEC under the General Department of Defense Industry, featuring a durable structure, high pressure resistance, and long-lasting performance during operation. The 83MEC DN50 DN65 fire angle valve is currently available in both PN10 and PN16 versions, meeting diverse requirements for fire protection water supply systems.
⭐ Outstanding Features of 83MEC DN50 / DN65 Fire Angle Valve
✔️ Coupling design compliant with TCVN 5739:2023 standards
✔️ Available in PN10 and PN16 versions suitable for various fire water supply systems
✔️ Valve body manufactured from durable materials with excellent corrosion resistance
✔️ High pressure resistance, stable operation, and long service life
✔️ Strong handwheel design for easy opening and closing operation
✔️ Easy connection with fire hoses and firefighting systems
✔️ Inspected and certified according to fire protection regulations
✔️ Widely used in urban areas, factories, shopping centers, and public infrastructure projects
🏭 The 83MEC DN50 / DN65 Fire Angle Valve is an effective solution for controlling and supplying firefighting water, helping improve the stable operation of fire protection systems in various projects nationwide.
Technical Specifications
| Specifications | DN50 & DN65 Fire Angle Valve PN10 | DN50 & DN65 Fire Angle Valve PN16 |
|---|---|---|
| Product Code | DN50: BQP83.10.VGDN50
DN65: BQP83.10.VGDN65 |
DN50: BQP83.16.VGDN50
DN65: BQP83.16.VGDN65 |
| DN65 Coupling Standard | TCVN 5739:2023 | TCVN 5739:2023 |
| Material | Cast Iron – Steel – Aluminum | Cast Iron – Steel – Aluminum |
| Color | Red – Yellow – Gray | Red – Yellow – Gray |
| Maximum Working Pressure | 1 MPa | 1.6 MPa |
| Strength Test Pressure | 1.5 MPa | 2.4 MPa |
