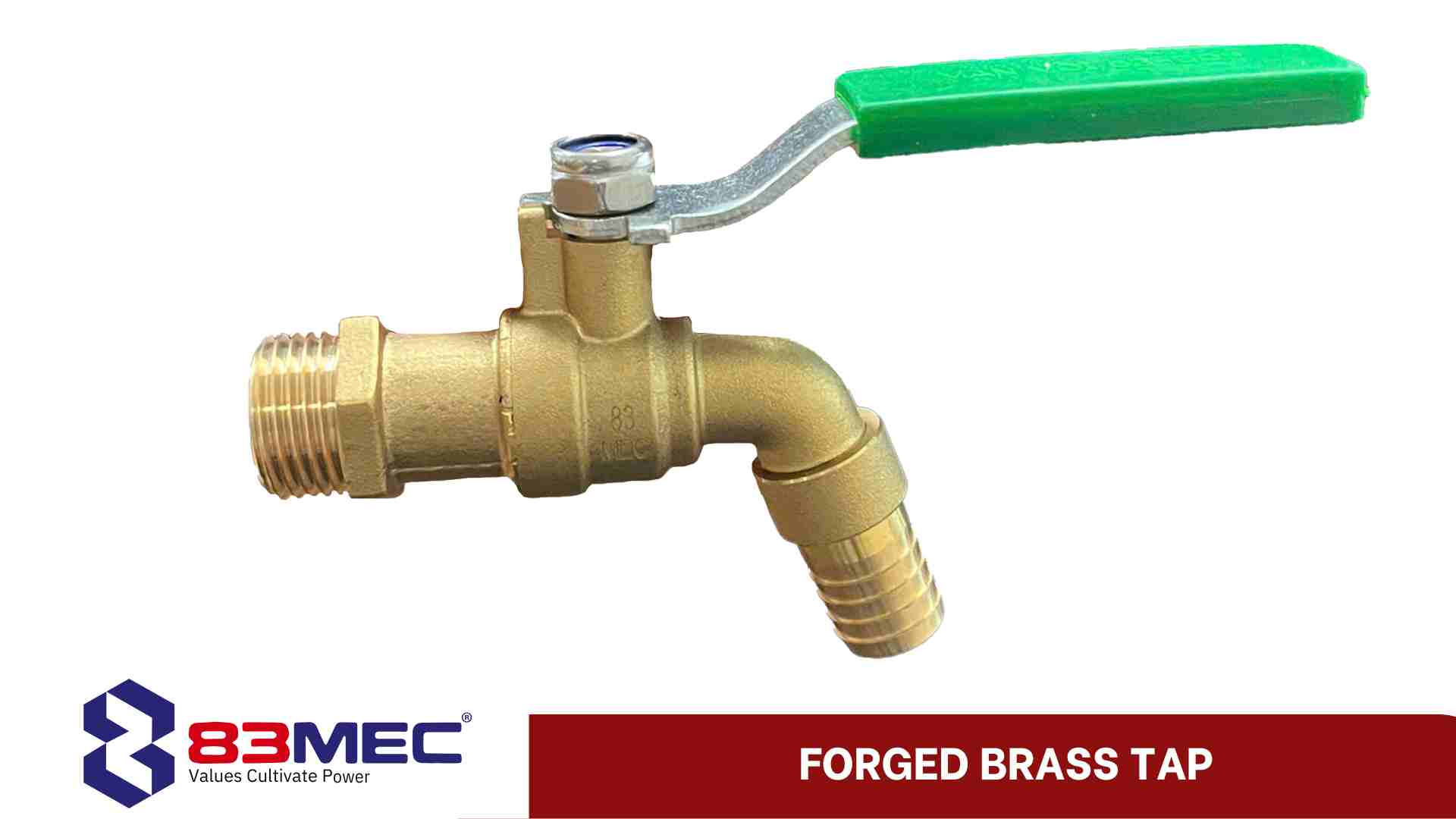

Tiếng Việt| Specifications | Forged brass tap | |
|---|---|---|
| Size (inch) | 1/2” | 3/4″ | DN (mm) | 15 | 20 | L (mm) | 136 | 136 | H (mm) | 57 | 57 | B (mm) | 93 | 93 |

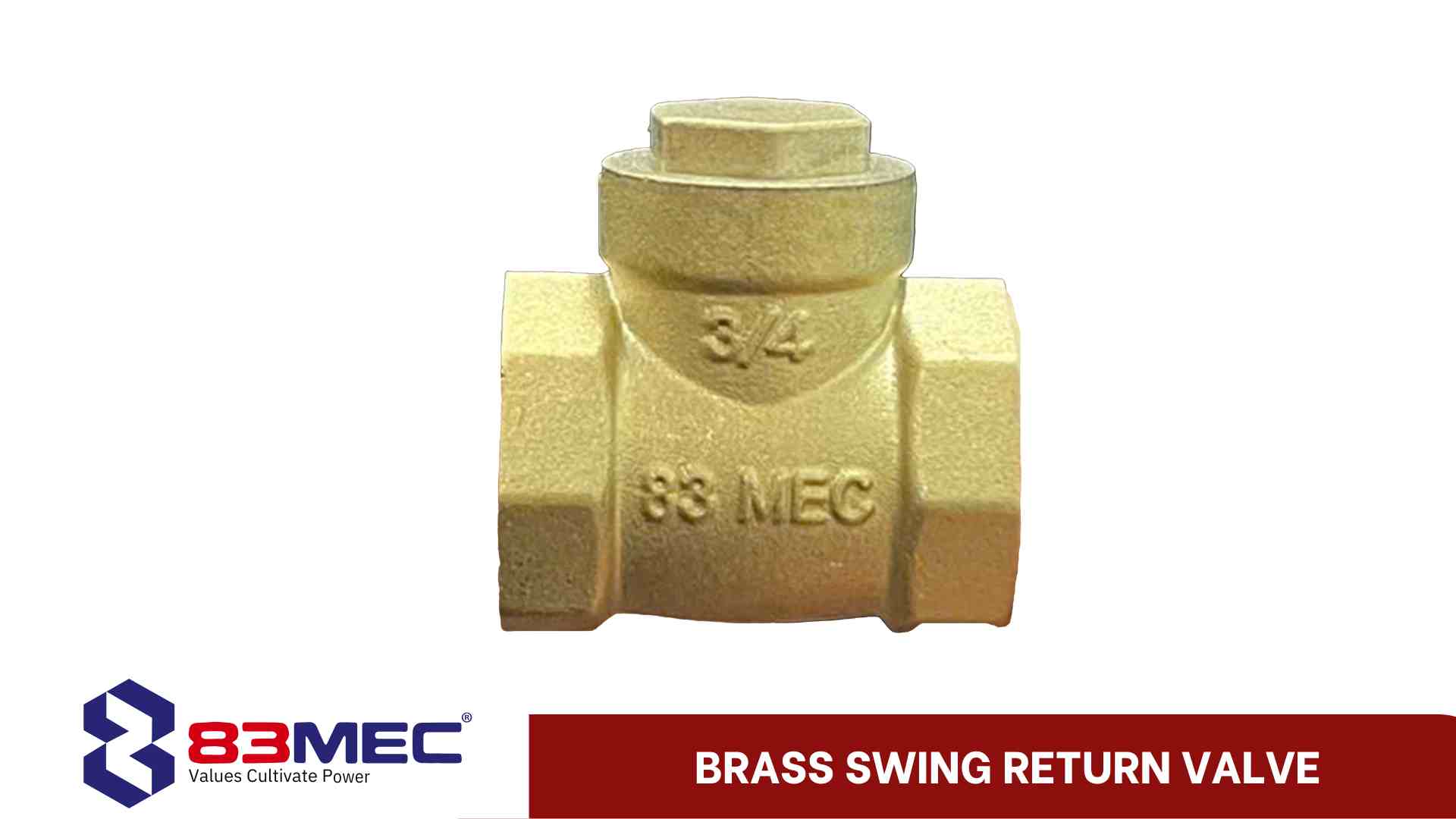

| Specifications | Brass Swing Return Valve | |
|---|---|---|
| Size (inch) | 1/2” | 3/4″ | DN (mm) | 15 | 20 | L (mm) | 37 | 43 | H (mm) | 39 | 47 |

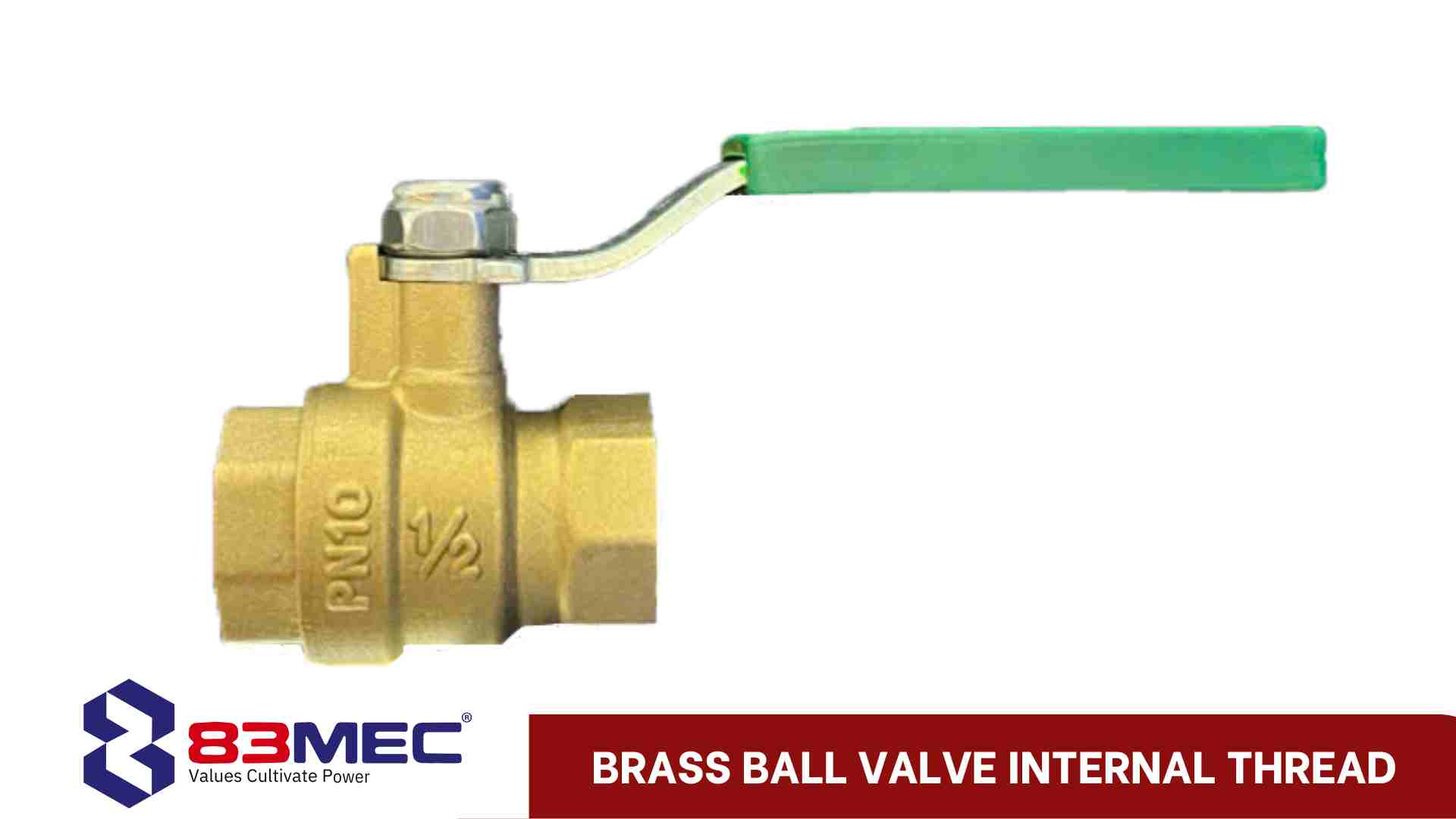

| Specifications | Brass Ball Valve Internal Thread | |
|---|---|---|
| Size (inch) | 1/2” | 3/4″ | DN (mm) | 15 | 20 | L (mm) | 43 | 48 | H (mm) | 58 | 64 | B (mm) | 93 | 93 |

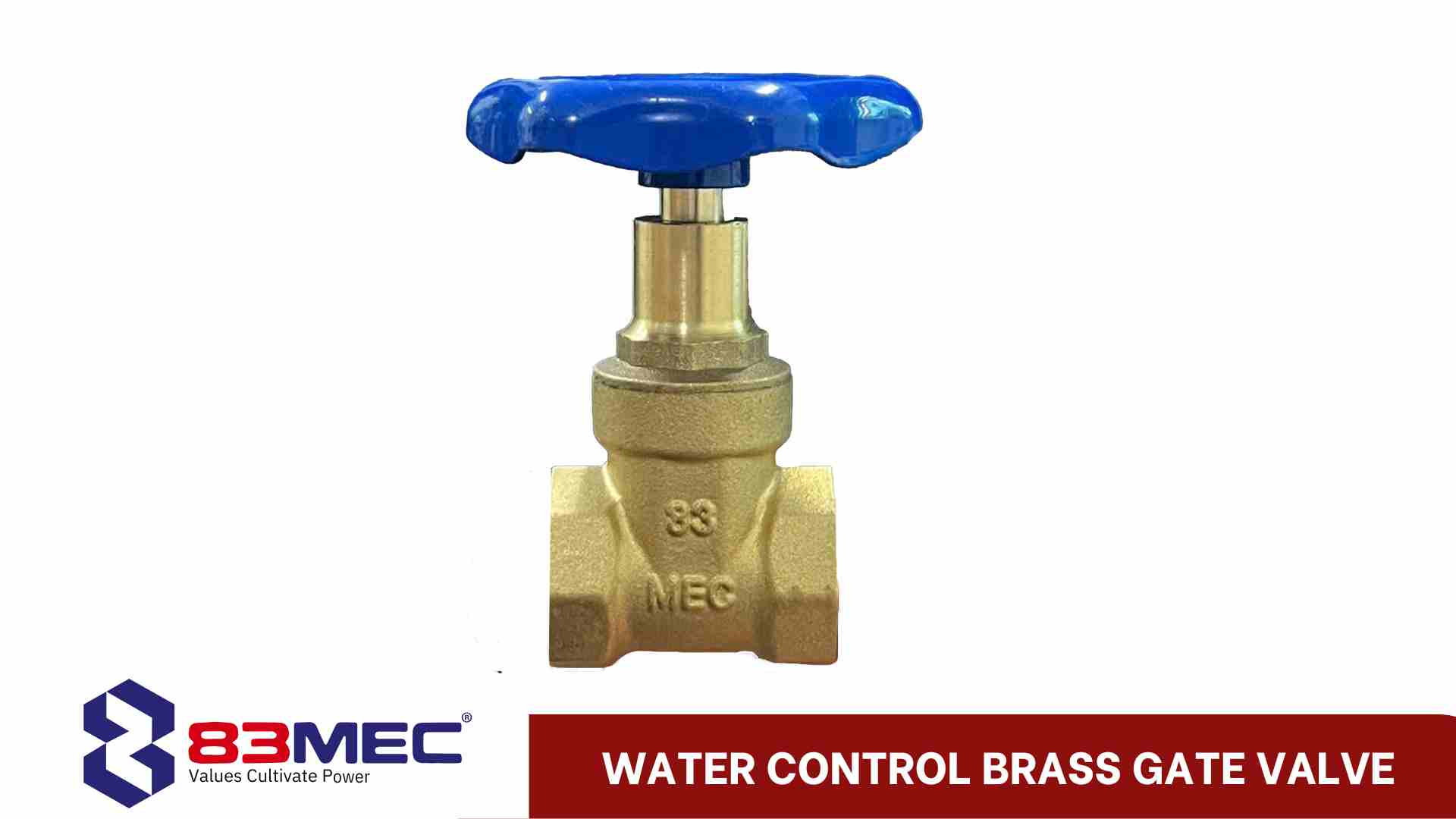

| Specifications | Water Control Brass Gate Valve | |
|---|---|---|
| Size (inch) | 1/2” | 3/4″ | DN (mm) | 15 | 20 | L (mm) | 35.5 | 39.2 | H (mm) | 75.5 | 84 | ØD (mm) | 55 | 55 |
